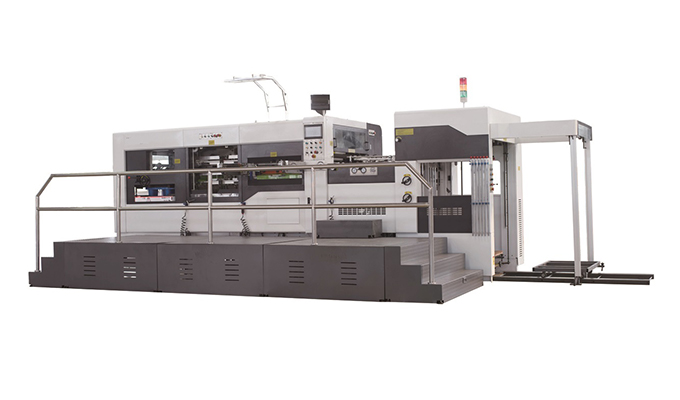

This is our automatic flatbed die cutter. The machine is designed for making high-grade color boxes and multi-shaped ink cartons. The flatbed die cutter uses a sophisticated servo system and non-pressurized feeding system to perform high precision operations. The entire machine is computer controlled for automatic running. The control system features an interface that is user-friendly for minimal chance of user error.
Components and Features:
The front guide of the flatbed die cutter has a swinging guide that has little impact on the paper edge yet keeps the positioning of the workpiece precise. The machine features four sets of precision fiber switches to ensure proper placement to avoid waste.
Die Cutting Components
The die cutting unit is made up of a variety of high quality and durable components that offer high precision cutting with excellent automation.
The paper collector unit automatically aligns paper stacks and keeps a count of the sheets and will shut off when the desired quantity is reached and it will alert the operator with an alarm.
The die cutter is PLC controlled with a user friendly digital interface that allows for easy operational corrections.
The machinery uses forced lubrication for the main drive and a timed lubrication system.
|Die cutting type||Pressed flat die cutting(Lower side is movable while upper side is unmovable)|
|Max paper transmitting size||1100* 780mm|
|Min paper transmitting size||400* 370mm|
|Max die cutting size||1090* 770mm|
|Min gripper size||5 mm|
|Max die cutting pressure||300N/cm²|
|Paper processed||Ivory board||0.1- 2 mm|
|Corrugated board||≦ 5 mm|
|Die cutting precision||±0.1mm|
|Max die cutting speed||6500 sheets/h|
|Max feeding pile height||11mm(above the level)|
|Min feeding pile height||11mm(above the level)|
|Total power||17 kw|
|Total weight||17 T|
|Overall size|| 7650*2100*2100mm (Not including the pedal)
|2||Curved shaft||High frequency quenching|
|3||Worm pole||Tempering, high frequency, grinding|
|4||Platform||Resin sand casting|
|5||Version box||Double reinforcement|
|6||Steel plate||Dazhi,Hubei||Hardness ： HRC50-55|
|7||Gripper tooth raw||Duralumin|
|8||Transmitting chain||R enold,UK|
|9||Pneumatic clutch||Yuyi, Italy|
|14||Paper feeding collecting motor||Wanxin, Taiwan|
|15||Track bolt bearing||South Korea|
