Home » Products » Folder Gluer » Folder Gluer (for Single Side Box)

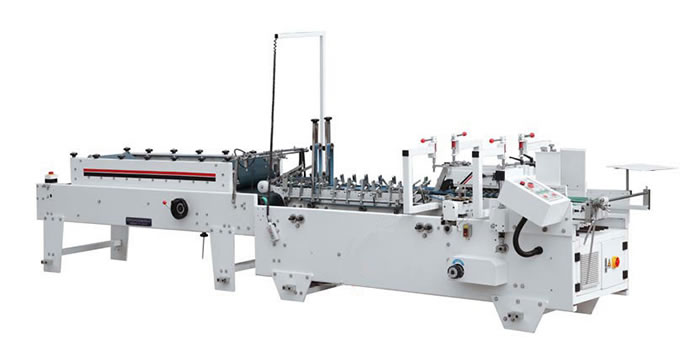

Folder Gluer for Single Side Box

This model of auto folder gluer for single side boxes is an economic machine that is easy to use and features a flexible debugging function. The device can paste together various cardboard boxes such as medical boxes, cosmetics boxes and other small type boxes. The largest size it can produce is a 70 mm opening.

Inquiry Form
Major technical index
Type of boxex (Amax) (Amin) (Bmax) (Bmin) (Cmin) (Dmin) (Fmin)
box 700mm 70mm 520mm 70mm 8mm 60mm 40mm
Characteristics
Linear velocity 0~200m/min
Suitable paper quality 220~800g ／ m² carton paper
Paste box basic form One-side edge pastes, two-side edge pastes.
Feeding way Automatically and continuously feeding
Adhesive Solute type
Needed power AC220V 2.2KW
Weight 1500KG
Overall Size 5300×820×1300mm
The scope of Count 0~999999
