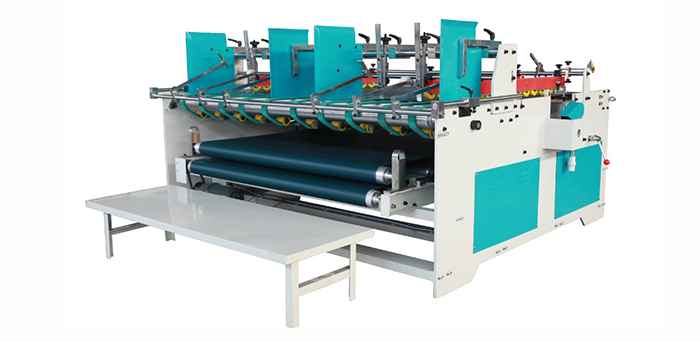

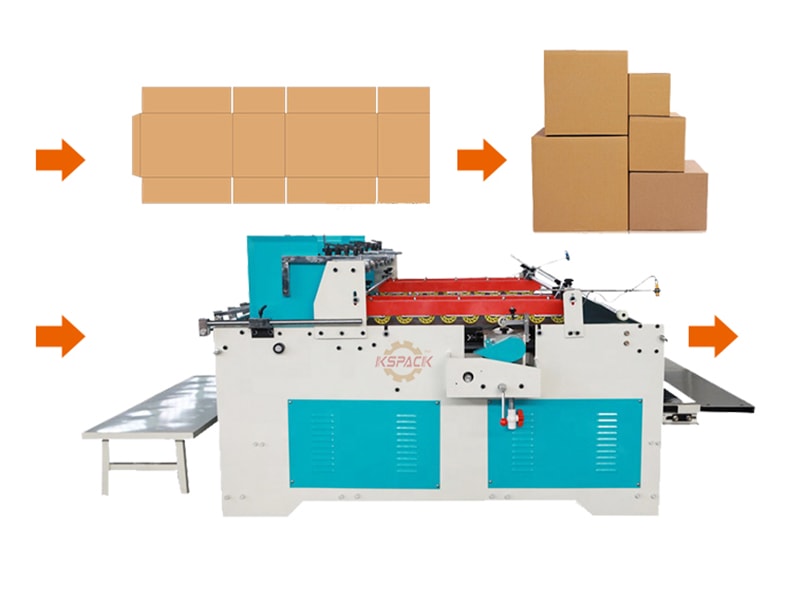

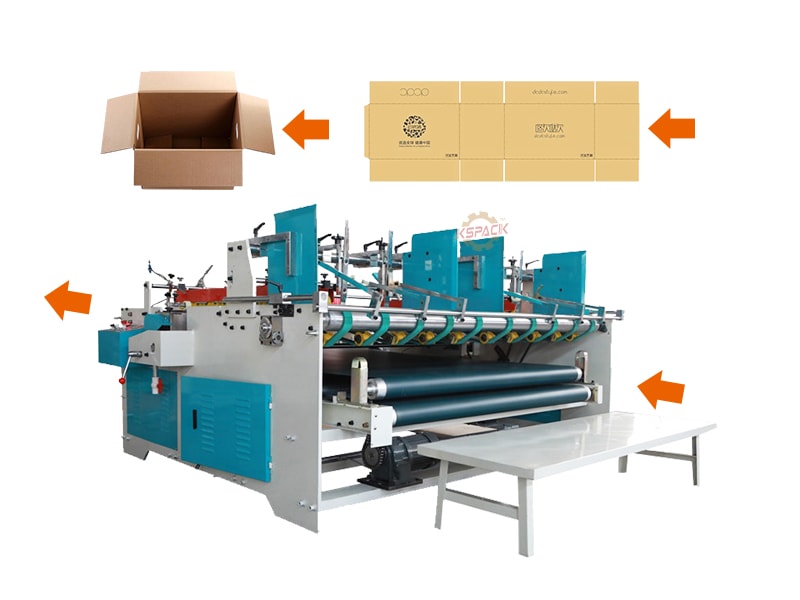

Pressing Type Semi-Automatic Folder Gluer
Our pressing type semi-automatic folder gluer is the final piece of equipment used in the production of corrugated cartons. The folding machine uses a manual folding function to give the user maximum control over the finished product. The rest of the process is performed automatically to maximize efficiency and quality. This equipment can be utilized in the production of ordinary cardboard boxes, specialty boxes and double cartons.
The pressing part of the folder compresses the boxes so that they can be stored and transported easily.
The Main Technical Parameters
| Parameters (2000 type) | |
| Maximum size | 2000*1100mm |
| Minimal size | 180*160mm |
| Motor power | 3 . 8 KW |
| Mechanical speed | 56m/min |
| Mechanical weight | 1 5 50kg |
| Size length * width * height | 2200x2650x1300mm |
