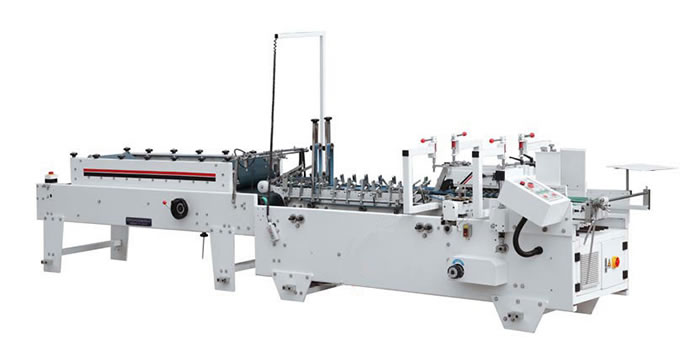

Folder Gluer for Single Side Box
This model of auto folder gluer for single side boxes is an economic machine that is easy to use and features a flexible debugging function. The device can paste together various cardboard boxes such as medical boxes, cosmetics boxes and other small type boxes. The largest size it can produce is a 70 mm opening.
Major Technical Index
| Type of boxex | (Amax) | (Amin) | (Bmax) | (Bmin) | (Cmin) | (Dmin) | (Fmin) |
| box | 700mm | 70mm | 520mm | 70mm | 8mm | 60mm | 40mm |
Characteristics
| Linear velocity | 0~200m/min |
| Suitable paper quality | 220~800g ／ m² carton paper |
| Paste box basic form | One-side edge pastes, two-side edge pastes. |
| Feeding way | Automatically and continuously feeding |
| Adhesive | Solute type |
| Needed power | AC220V 2.2KW |
| Weight | 1500KG |
| Overall Size | 5300×820×1300mm |
| The scope of Count | 0~999999 |
Details
