Semi-Automatic Folder Gluer | Corrugated Carton Production

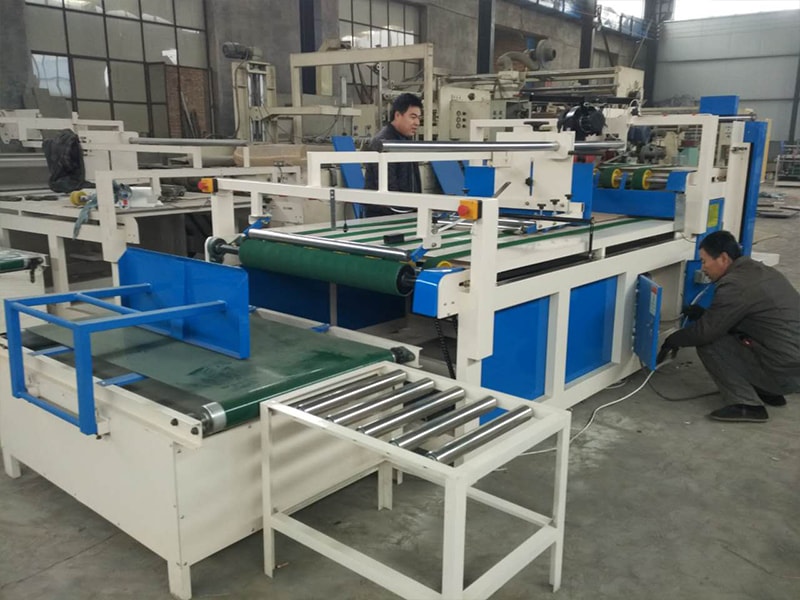

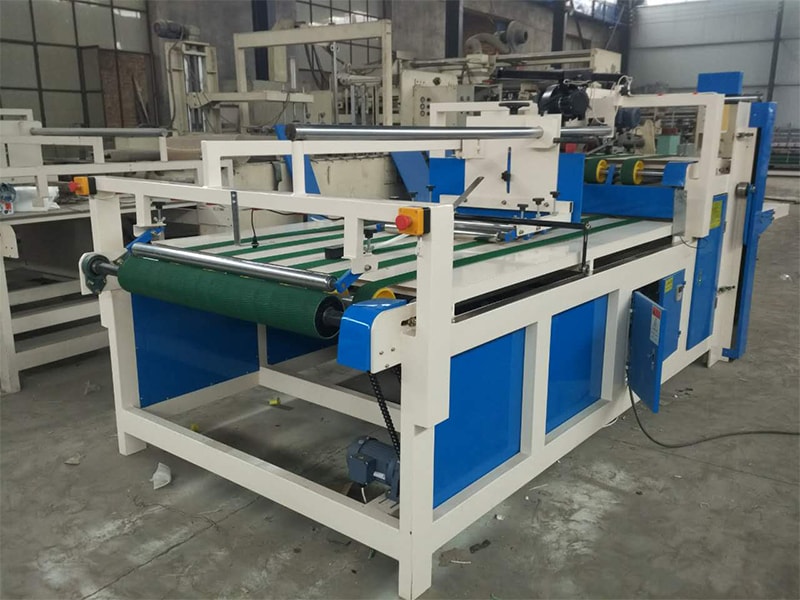

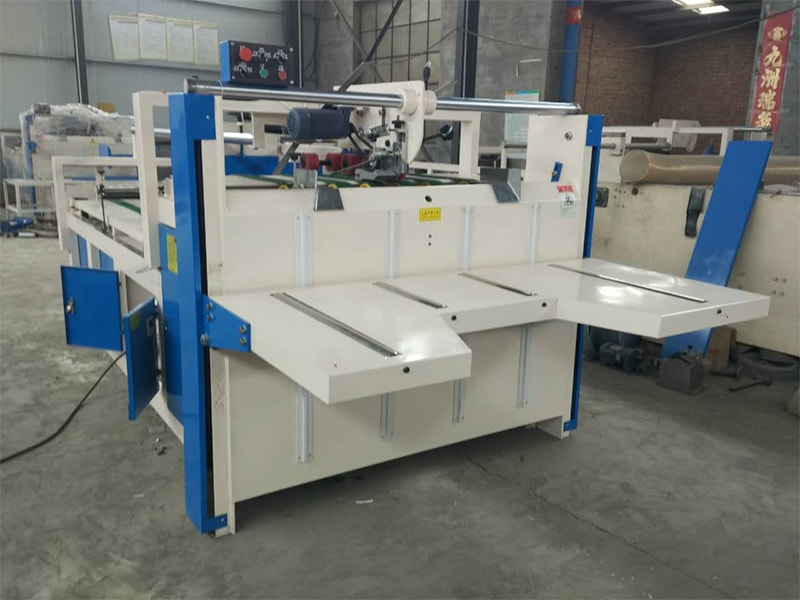

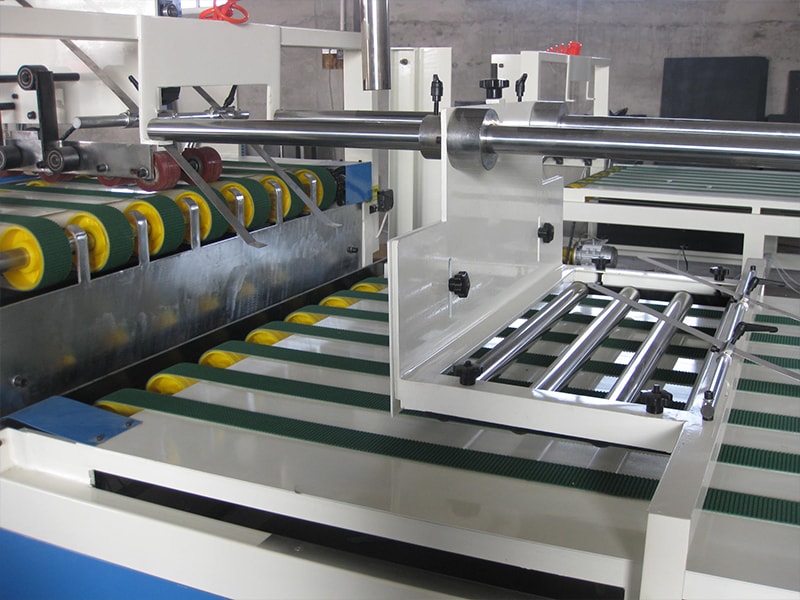

Semi Automatic Folder Gluer

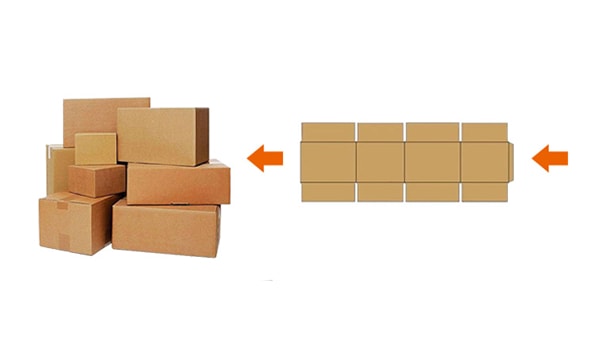

The semi-auto folder gluer is primarily used to produce single face and double face corrugated cartons. The machine features quick and easy specification adjustments and a gluer wheel that keeps running after the equipment stops to avoid the glue from drying and/or leaking. After the cartons are completed, they are automatically ejected and piled neatly.

Request a Quote

Watch Video

Technical Parameters

Model	ZXJ-2600	ZXJ-2800
Max size (L+W)*2	2460mm	2800mm
Min size (L+W)*2	340mm	340mm
Max size(W+H)*2	1515mm	1515mm
Min size (W+H)*2	240mm	260mm
High of feeder	900mm	1000mm
Power	4kw	4kw
Machine length	5300	5300mm
Machine weight	2470	2150kg
Machine speed	40m/min	60m/min

Details

Baiying Carton Machinery is a reliable manufacturer specializing in high-performance corrugated board and corrugated box making machines. With 20 years of technical expertise, we provide complete production solutions, including 2/3/5/7-ply corrugator lines, high-speed flexo printer slotter die-cutters, and automatic folder gluers. Our specialized portfolio extends to paper tube making machines and glue trap board production lines. Having exported 95% of our equipment to over 20 countries—including the USA, Russia, and India—we focus on delivering durable, high-precision machinery that meets rigorous industrial standards for professional packaging plants and high-volume box factories worldwide.
