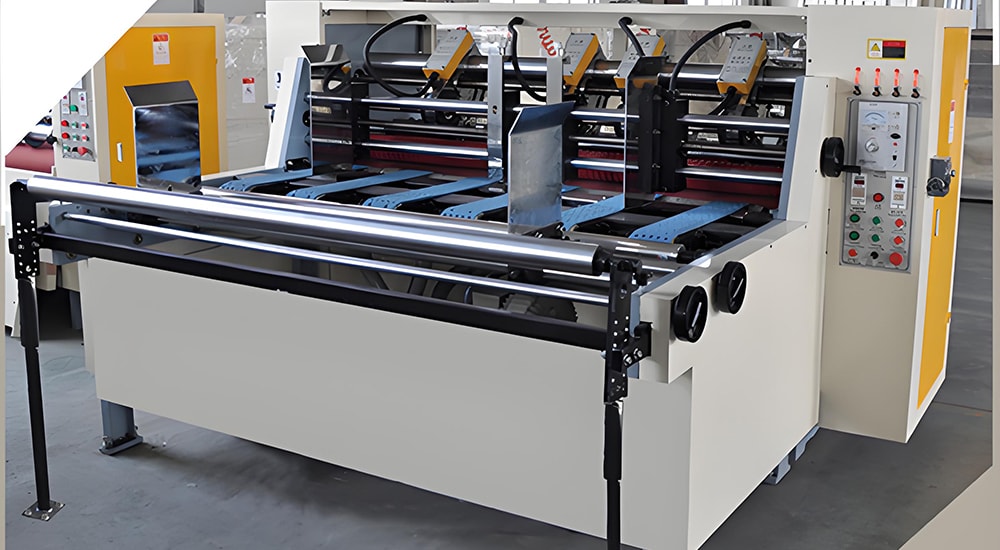

Slitter Scorer, KSF Series

Slitter Scorer, KSF Series
Technical parameters
Spec Data
Machine allows cardboard width (width) 2300mm
The maximummechanical speed: 150 m / min
Paper Cutter (according to user requirements increase or decrease) 4 pieces
pressure line Round: (according to user requirements increase or decrease) 6 pairs
Minimum slitting width: 140mm
Minimum pressure line width: 30mm
outer diameter of paper thin blade: 200mm
paper thin blade thickness: 1.3mm (alloy)
Main motor power: Fan power: 5.5kw 3.4kw
Air pressure: <0.4mpa
Machine dimensions: 3400 × 2300 × 1500mm
Weight: 1600kg
Min.Feeding: (two plastic wheelbase) 320mm

Baiying Carton Machinery is a reliable manufacturer specializing in high-performance corrugated board and corrugated box making machines. With 20 years of technical expertise, we provide complete production solutions, including 2/3/5/7-ply corrugator lines, high-speed flexo printer slotter die-cutters, and automatic folder gluers. Our specialized portfolio extends to paper tube making machines and glue trap board production lines. Having exported 95% of our equipment to over 20 countries—including the USA, Russia, and India—we focus on delivering durable, high-precision machinery that meets rigorous industrial standards for professional packaging plants and high-volume box factories worldwide.
