Mill Roll Stand

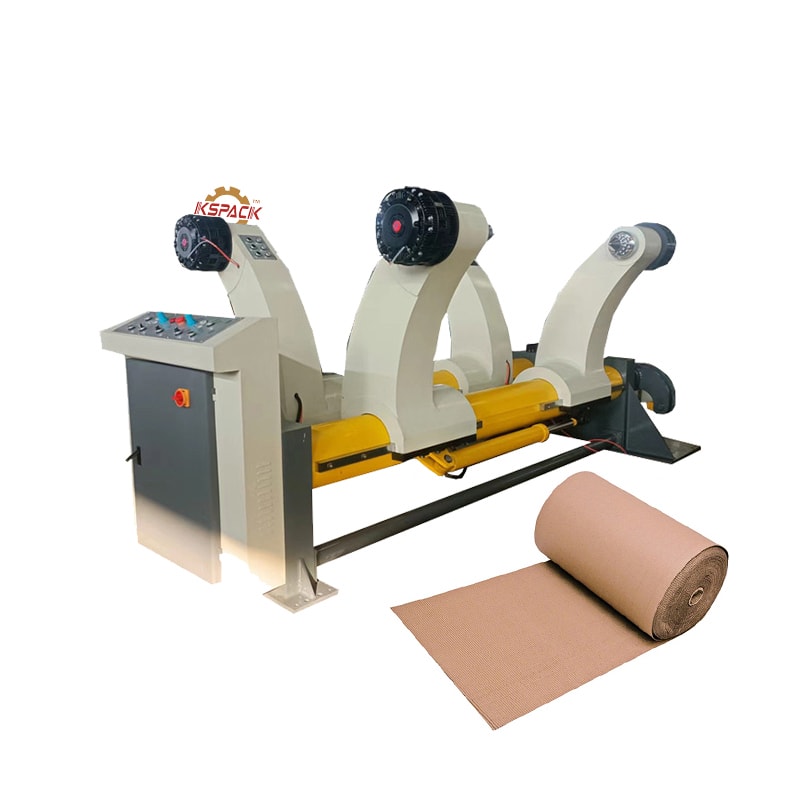

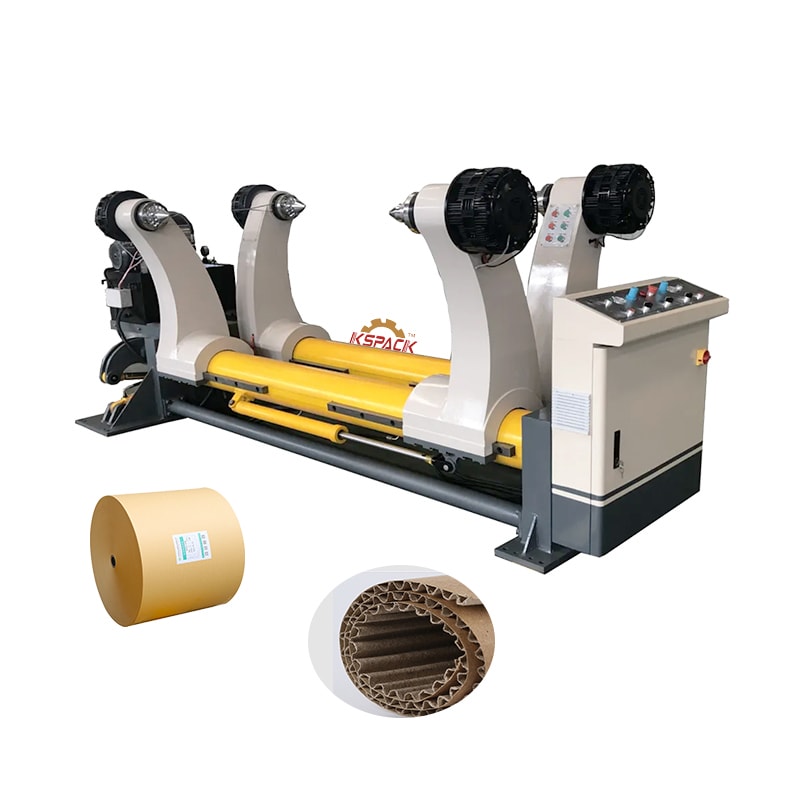

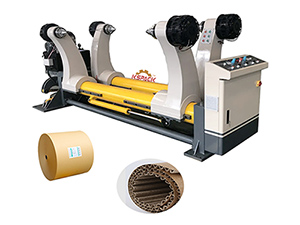

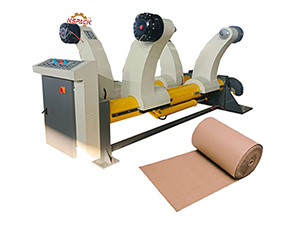

ZJ-Y Hydraulic Shaft Less Mill Roll Stand
Technical specifications:
- Control type: whole hydraulic type
- Working width: Max1600mm, Min800mm
- Diameter of paper reel: max ￠1500mm, Min ￠350mm
- Single side max loading: 3000kg
- Mill roll stand main shaft diameter: ￠215mm
- Pneumatic work pressure: 0.6～0.9MPa
- Total power: 4.0kw
- Working power: 380V, 50Hz
- Whole machine dimension: 3650×1600×1680(L×W×H）(when shift swing)
Hydraulic parts:
- Working pressure: 12～16 MPa
- Hydraulic working area (swing): ￠100mm×460mm
- Hydraulic diameter (clamp): ￠63mm×720mm
- Hydraulic station power: 4.0kw, continue work
- Hydraulic station: 220V, 50Hz
- Structure characteristics: Symmetrical design that can be loaded without stopping the machine.
- Hydraulic control: Lifting and lowering, open-close and right-left adjustments of arms are operated by hydraulic system
- Pneumatic control: for web tension
- Center design: Tapered center design
Main bought-in parts, raw materials and origin:
- Main shaft of mill roll stand: Qualified thick seamless steel pipes, origin: Chengdu
- Wall plate two sides: steel 20# origin: Hebei
- Clamp arms: HT250 casting, origin: Hebei
- Main beam connecting channel steel: 280mm origin: Angang
- Bearing: from Ha, Wa, Luo
- Electric system: Chint China.
- Pneumatic parts: Airtac and Zaozhuang, Origin: Taiwan and Shandong
- Hydraulic parts: Beiye group(Huade) Origin: Taiwan and Shandong

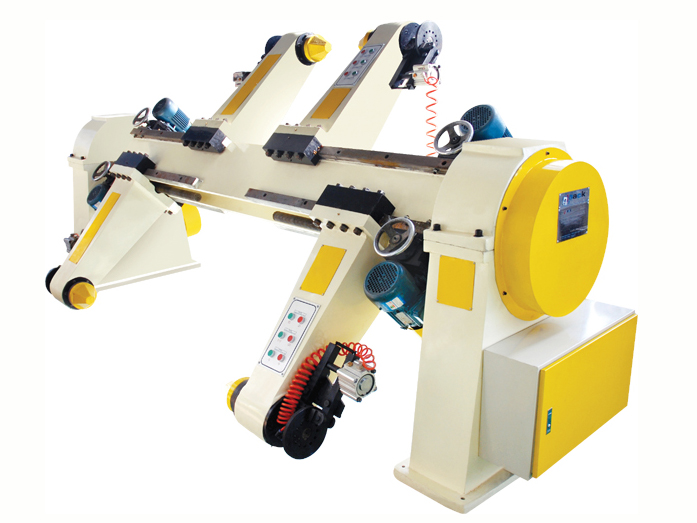

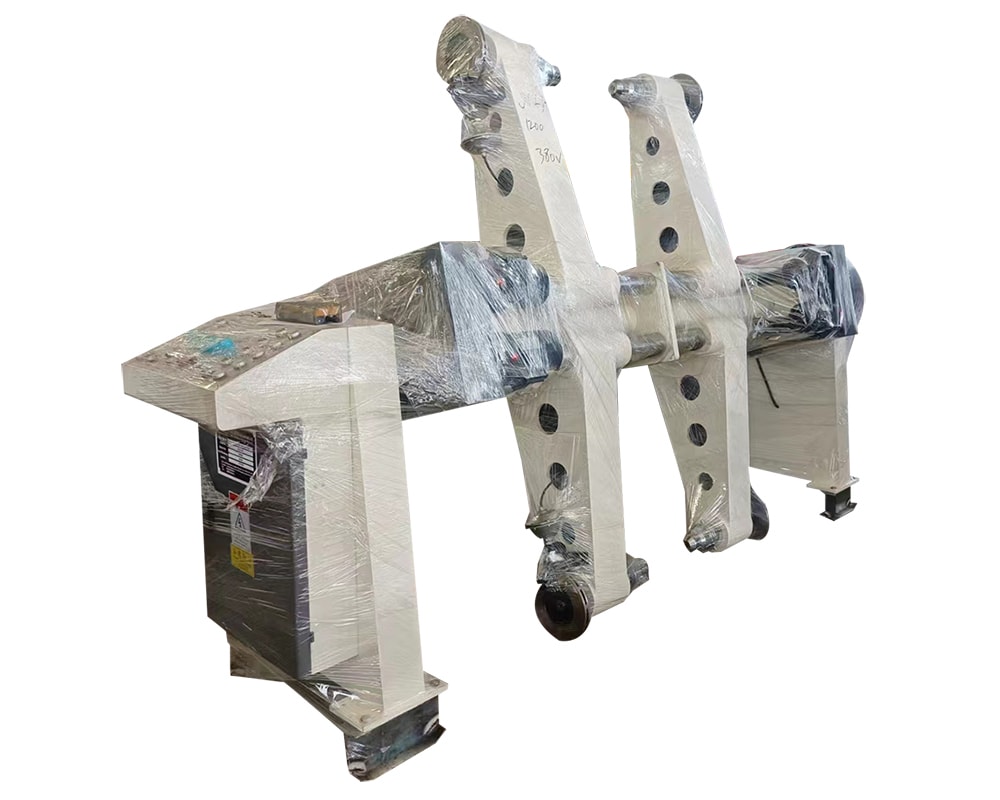

Electrical Mill Roll Stand
Characteristics:
- The stand's structure is symmetrical and can load two rolls of paper at the same time.
- Paper rolls can be changed without stopping the machine.
- Effective working width: 1400, 1600, 1800, 2000mm
- Max. raw paper dia: Ø1600mm
- Min. raw paper size: Ø400mm×900mm
- Max. load of single arm: 1500kg.
- The length of the steel rail is 4500mm.
- Use disk brake, have handle and electrical models. (can choose.)
- The clip head is made from cast-iron and also comes in a double expanded optional model.
- Electrical elements are centrally controlled, improving efficiency
Technological parameters:
- Paper roll frame working model: Mechanical electrical operation.
- Paper roll length scope: Max.: 1600mm Min.:900mm
- Paper roll diameter scope: Max.: 1400mm Min.:400mm
- Single side max. load: 1500kg.
- Motor power: (all are planet cycloid motor)
- Clip motor: 0.75KW 4units 380V 50HZ
- Up and down motor: 2.2KW 1unit 380V 50HZ
Paper roll up-dolly and rail:
- Stable rolling with a directional leading wheel on the dolly.
- Each roll stand has two paper roll sending rails, it can load the rolls on both sides simultaneously.

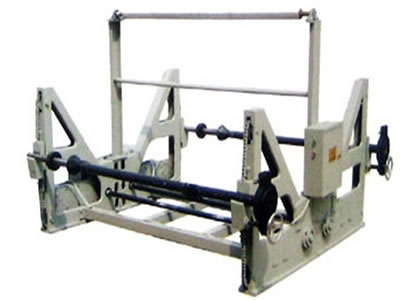

Electromotion Shaft Stand
- The channel mill roll stand allows for easy paper loading and quick dispensing for small and medium factory settings.
- The size of machine: 1600mm
- The power: 2.2KW
- Machine size: 1800x1700x1400mm
