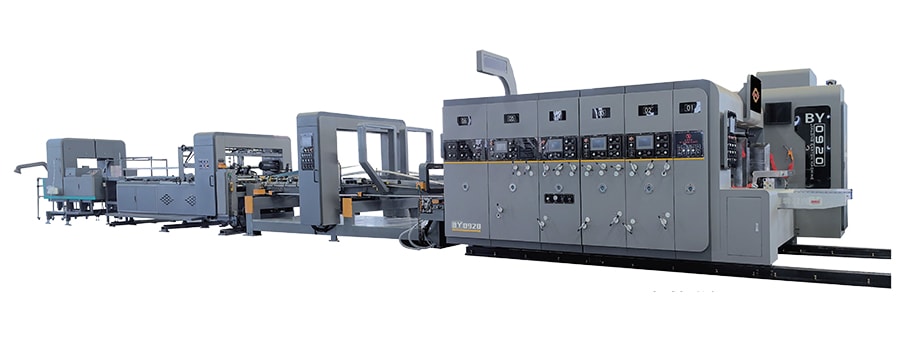

Bottom Print Flexo Folder Gluer, BYY-GS (Inline)

Bottom-printing, Slotting, Die-Cutting, Gluing, Stitching, and Strapping

Bottom Print Flexo Folder Gluer, BYY-GS (Inline)
Request a Quote
Specifications
Printing material A, B, C, AB, BC, and ABC flute corrugated board (max. board thickness gap 11mm; min. board thickness gap 1mm)
Machine inside width 2400mm 2600mm 2800mm
Max. sheet size 900×2200mm 1200×2400mm 1400×2600mm
Max. printing area 900×2100mm 1200×2300mm 1400×2500mm
Skip feed size 1000×2200mm 1400×2400mm 1600×2600mm
Min. sheet size: Reverse knife Positive knife 240×740 240×660 350×760 350×680 400×760 400×680
Printing plate thickness 7.2mm 7.2mm 7.2mm
Design speed 250pcs/min 180pcs/min 120pcs/min
Economical speed 120–220pcs/min 100–150pcs/min 80–100pcs/min
Color registration accuracy 2/3/4 colors ±0.5 / ±0.5 / ±0.75mm 2/3/4 colors ±0.5 / ±0.5 / ±0.75mm 2/3/4 colors ±0.5 / ±0.5 / ±0.75mm
Slotting accuracy ±1.2mm ±1.5mm ±1.5mm
Max. slot depth 7×225mm 7×300mm 7×350mm
Min. slot distance: Reverse knife Positive knife 155×155×155×155 260×60×260×60 160×160×160×160 300×60×300×60 160×160×160×160 300×60×300×60
Max. die-cutting size 900×2150mm 1200×2350mm 1400×2550mm
Printing roller diameter Ø304mm Ø408mm Ø480mm
Max. folder gluer speed 180m/min 180m/min 180m/min
Economical folder gluer speed 150m/min 150m/min 150m/min
Max. stitching speed 4 stitches – 70 sheets/min 4 stitches – 70 sheets/min 4 stitches – 70 sheets/min
Automatic Strapping Machine (Optional)
Bottom Print Flexo Folder Gluer, BYY-GS (Inline)
Function and Characteristics
  • Strapping speed: ≤1.5 seconds/strap
  • Bonding method: Hot-melt
  • Bonding: Bottom bonding coverage ≥90%; bonding width ≥20mm; position deviation ≤2mm
  • Strapping tension: 0–45kg
  • Power: 600W, 10A
  • Power supply: 1P, 220V, 50Hz (refer to the machine brand for standards)
  • Noise level: ≤75 dB
  • Customization options: Frame size and strap width
