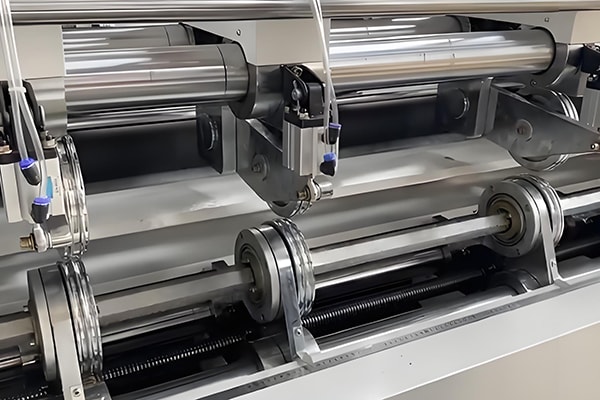

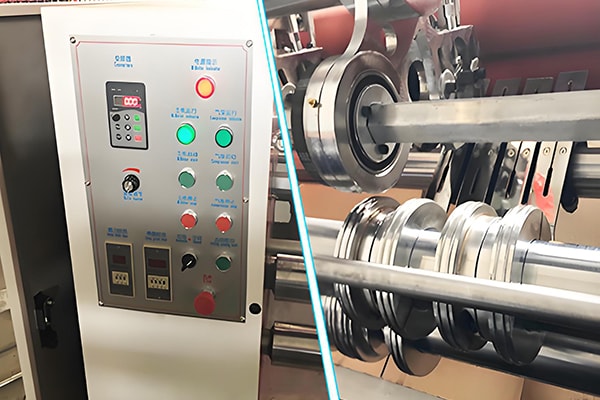

Slitter Scorer, BFY Series

Technical Data
Model unit BFY1800 BFY2000 BFY2200 BFY2500
width of passing paper board(mm) mm 1700 1900 2100 2400
speed of passing paper board(mm) m/min 80-180
number of knives (piece) piece 4
number of track-pressing wheels(pair) pair 6
Min dividing width(mm) mm 130
min track-pressing width(mm) mm 60
Diameter of knife (mm) mm ∮ 260
thickness of kinfe mm ≤1mm
motor power (kw) kw 4
Size(mm) mm 2400X1120X1400 2600X1120X1400 2800X1120X1400 3100 X 1120X1400
Weight(kg) kg 1250 1550 1950 2500

Baiying Carton Machinery is a reliable manufacturer specializing in high-performance corrugated board and corrugated box making machines. With 20 years of technical expertise, we provide complete production solutions, including 2/3/5/7-ply corrugator lines, high-speed flexo printer slotter die-cutters, and automatic folder gluers. Our specialized portfolio extends to paper tube making machines and glue trap board production lines. Having exported 95% of our equipment to over 20 countries—including the USA, Russia, and India—we focus on delivering durable, high-precision machinery that meets rigorous industrial standards for professional packaging plants and high-volume box factories worldwide.
