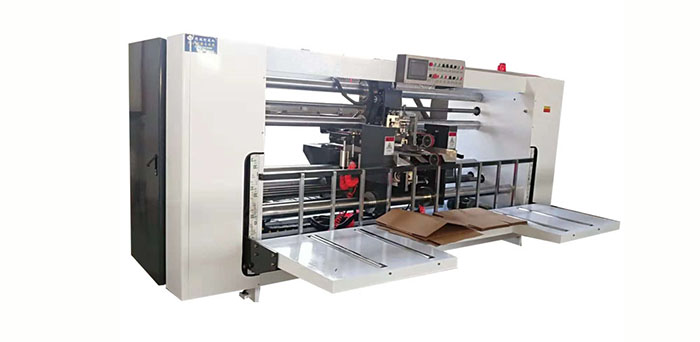

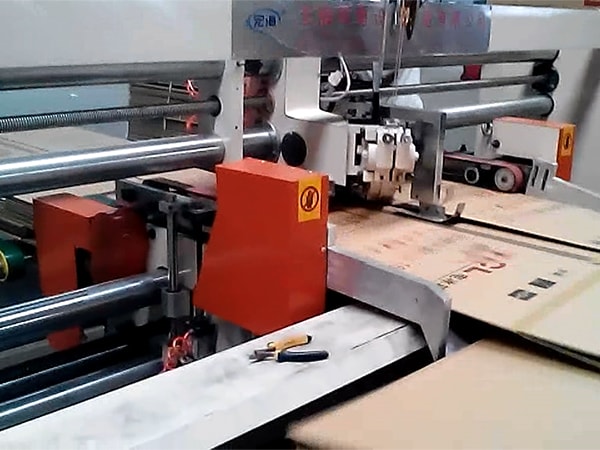

Twin Head Stitcher
The twin head stitcher is a dual-purpose machine designed for single forming cartons, double forming cartons and irregular carton formation. The entire machine is electrically controlled and settings are easily configured within minutes. Carton production line usually ends with a stitching machine and this one features nails that are freely adjustable between 30-120mm. These machines can produce special type boxes without covers.
| Model and parameter |
|
|
|
| Max corrugated paperboard(A+B)x 2 (mm) | 4000 | 4800 | 6000 |
| Min. corrugated paperboard(A+B)x 2 (mm) | 1060 | 1060 | 1060 |
| Max paperboard length mm | 2850 | 2850 | 2850 |
| Min. paperboard length mm | 350 | 350 | 350 |
| Max. paperboard width mm | 1000 | 1200 | 1500 |
| Min. paperboard width mm | 180 | 180 | 180 |
| Min. paperboard height(C+D+C) mm | 400 | 400 | 400 |
| Nail distance mm | 30-120 | 30-120 | 30-120 |
| Number of nails. | 1-99 | 1-99 | 1-99 |
| Nails speed nails/min | 300 | 300 | 300 |
