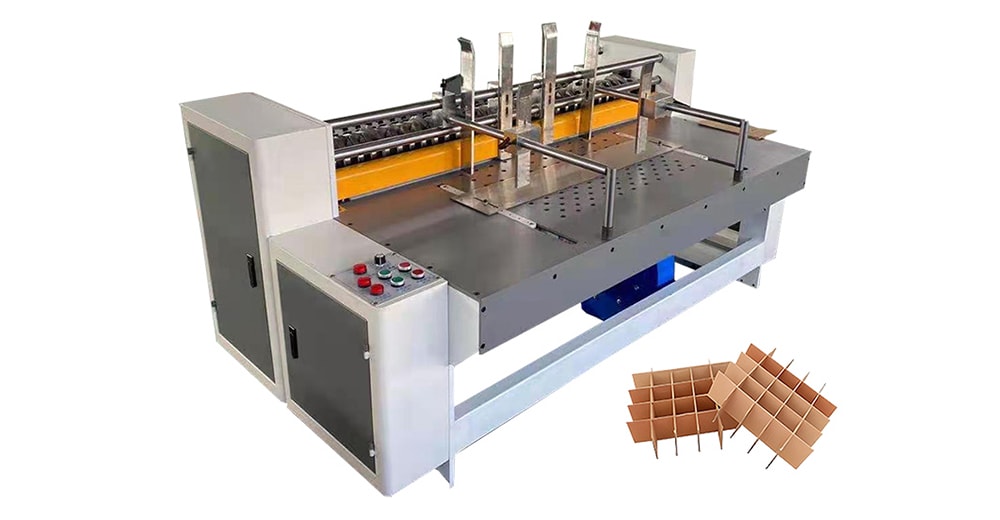

Partition Slotter
The partition slotter is a corrugated cardboard machine that forms slots in cardboard boxes that can then be filled with specially cut partition pieces in the partition assembler. The machine has 6 working axes to form several precise cuts simultaneously. It also features 6 shaving paper tools to clear scraps of paperboard at all times during operation.
Main technical data
| Model 1000mm | data |
| Max paperbaord | 300*1000mm |
| Min Paperboard | 80*100mm |
| Min.span size of slot | 3 5mm |
| Width of slot | 3mm-5mm |
| Max.depth of slot | 15 0mm |
| Pushing cardboard speed of working table | 120time/s |
| Thickness of processing cardboard | 2mm-5mm |
| Machine shape(long * width * height) | 1 7 50 * 1 50 0 * 1220 |
