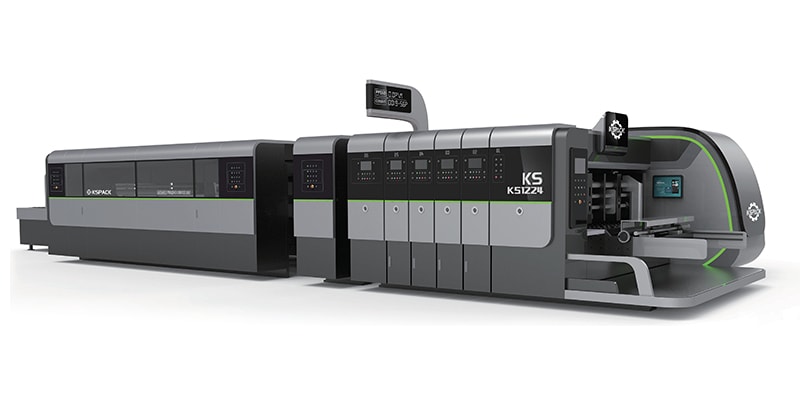

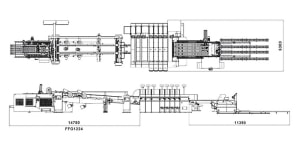

Flexo Folder Gluer, BYY-LD (Inline)

Printing, Slotting, Die-Cutting, Gluing, and Strapping

Flexo Folder Gluer, BYY-LD (Inline)
  • Flexo Folder Gluer, BYY-LD (Inline)
  • Flexo Folder Gluer, BYY-LD (Inline)
    • Request a Quote
    Features
    • Equipped with an intelligent monitoring system for rapid fault detection, improving maintenance efficiency and reducing downtime.
    • All major components are manufactured from premium-grade materials. Transmission rollers are made of high-quality steel, hard chrome-plated, and precision-ground.
    • Drive gears are made of alloy steel, carburized and quenched, ground to HRC > 60 for long-term durability.
    • Keyless locking devices eliminate backlash, ensuring high concentricity and consistent printing accuracy.
    • Automatic zero return, automatic ink balancing, memory storage, and reset functions. This allows swift carton making—one sheet in, one carton out.
    • Emergency stop switches installed on each unit for enhanced operator safety.
    • All units are motorized and separated via the feeding section, with an audible warning during movement to ensure operator safety.
    • Gap adjustment for transfer rollers, impression rollers, glue rollers, and anilox rollers is controlled by dual-stage gear reducers with dial indicators for precise and easy setting.
    • Optional slot-free die-cutting system with special knife configurations (commonly bevel-type cutting).
    Specifications
    Model 920 1224 1228
    Max. mechanical speed 300 sheets/min 250 sheets/min 220 sheets/min
    Max. feeding size (L×W) 900×2000mm 1200×2400mm 1200×2800mm
    Min. feeding height 300mm 350mm 350mm
    Min. folding gap 240×110mm 250×110mm 250×110mm
    Applicable board E, A, B flute corrugated board
