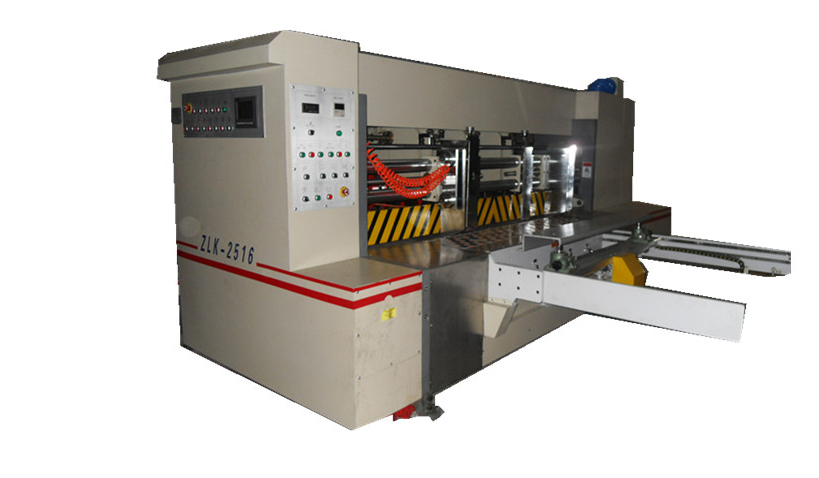

The ZLK series automatic rotary slotter machine uses a number of internationally advanced components to achieve a high degree of automation for high speed and high precision production of corrugated paperboard products.
This machine is computer controlled to eliminate human error and maximize efficiency. The feeding system is suitable for all types of paperboard and performs with high speed precision.
|Max speed||170 (pcs/min)|
|Working speed||80-140 (pcs/min)|
|Min paperboard size||380mm×650mm|
|Max paperboard size (normal size)||1200mm×2300mm|
|Max paperboard (skip feeding paperboard)||1400mm×2300mm|
|max slot area||1200mm×2200mm|
|Smallest slot interval (positive and negative knife)||260mm×100mm× 2 60mm×100mm|
|Max slot depth||530mm|
|Max cutting angle width||50mm|

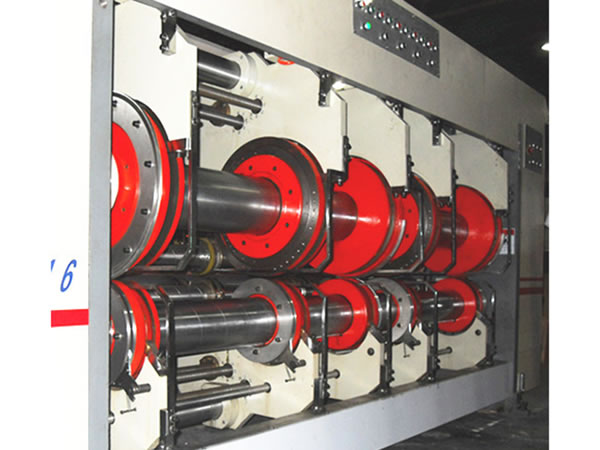

Slotter Section Function
The slotter section of the machine features double slot knives that are constructed from alloy steel for durability. The machine has an incredible slotting precision that has an error tolerance within 1mm.

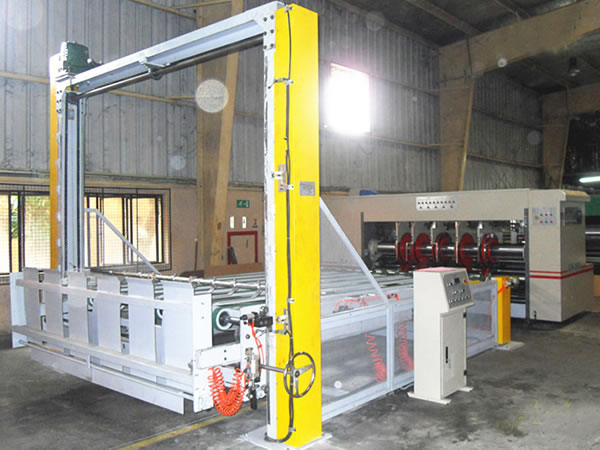

Paper is received by a drive belt and can then be stacked up to 1700mm. The chain driven belt offers slip resistance and functional reliability.
