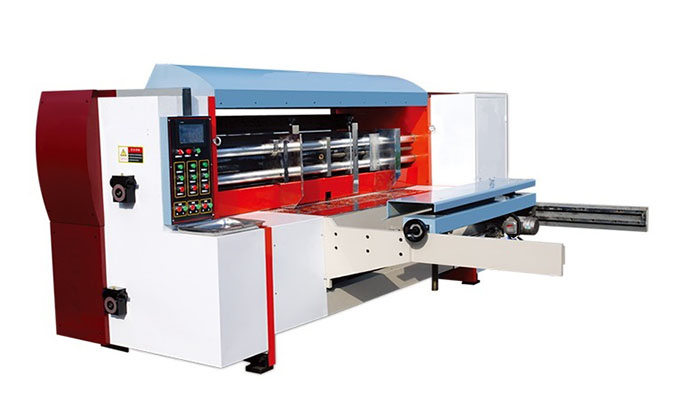

Automatic Rotary Die Cutter

Die Cutter Component

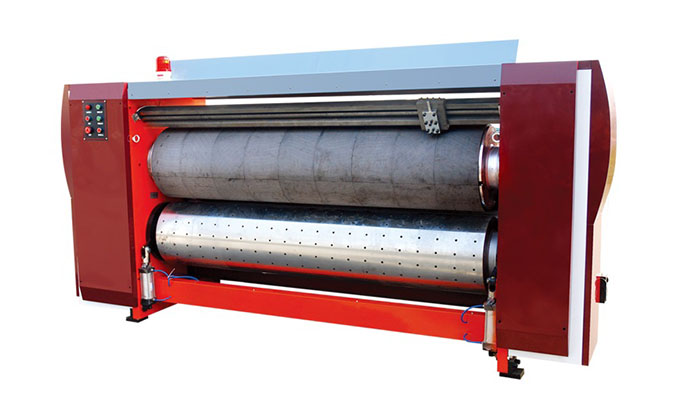

The automatic rotary die cutter rolls are produced using 30mm thick high quality steel with a hard chrome plating. The roller cylinder features automatic separation devices to reduce wear.

Request a Quote

Watch Video

Feeding Unit

The feeding unit features high precision and a high volume output capacity with an outstanding 10,000 pcs/hour.

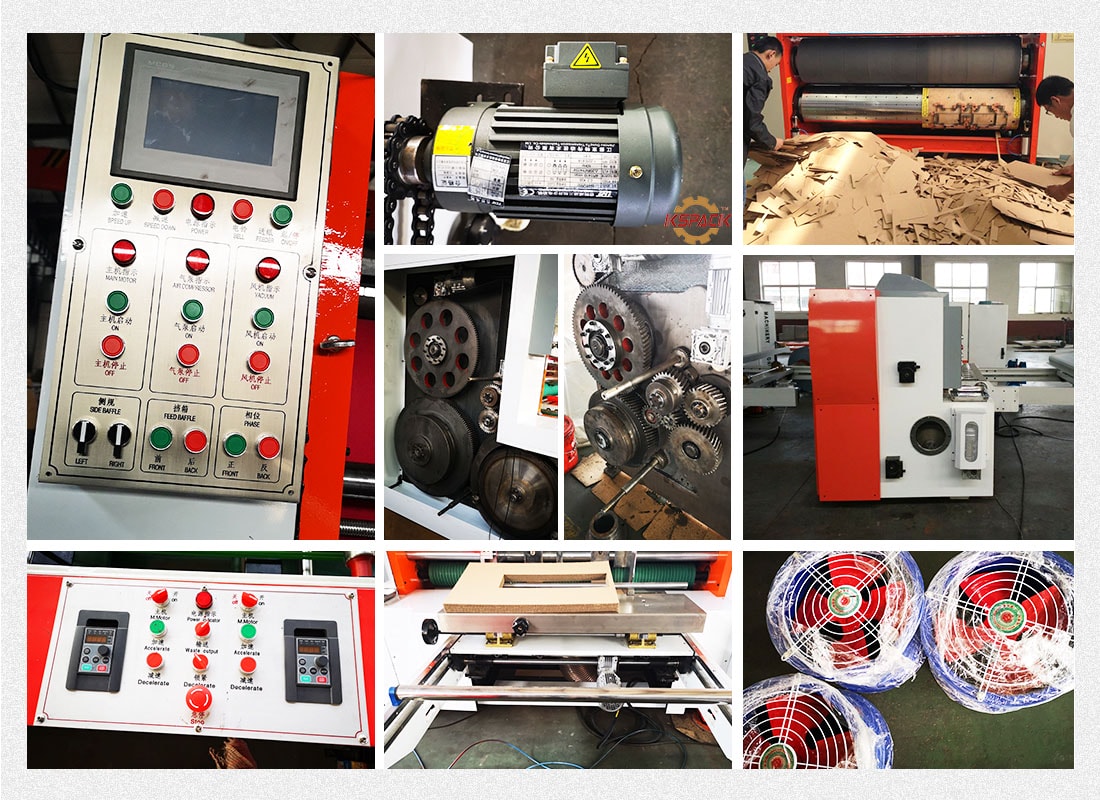

Computer Control

The paperboard processing equipment features a PLC controller that is used to maintain reliability and precision. The LCD touch screen interface is user-friendly.

Technological Parameters

Model	Max feeding paper(mm)	Max feeding paper(mm)	Thickness of feeding paper	Feeding speed(pcs/min)	Feeding Power(pcs/min)	Machine weight
MQJ17A	1700×1200	350×500	11mm	30-120	4.0kw	4500kg
MQJ17A	2000×1200	350×500	11mm	30-120	5.5kw	5000kg
MQJ20B	2100×1400	400×600	11mm	50-160	7.5kw	5500kg
MQJ25C	2400×1400	400×600	11mm	50-160	7.5kw	6000kg
MQJ25C	2500×1400	500×600	11 mm	30-100	11.0kw	6 5kg
