Wooden Die Making Machine

The wooden die making machine is a type of jigsaw that can perform highly precise cuts and it features a built in dust absorption unit to prevent the release of sawdust that can damage moving parts of certain equipment.

Request a Quote

Technical Parameters

Max.scope of work(mm)	800	1000	1200	1500
Table size (mm)	600× 900	700× 1000	800× 1200	1000× 1300
Saw Blade trip (mm)	30	30	30	30
Saw Blade thickness(mm)	0.3-3	0.3-3	0.3-3	0.3-3
Max.thickness(mm)	40	40	40	40
Sheet Category	Wood plastic Plate	Wood plastic Plate	Wood plastic Plate	Wood plastic Plate
Speed(/)	1300	1300	1300	1300
Total power(W)	980	980	980	980
Voltage (V)	220/380	220/380	220/380	220/38

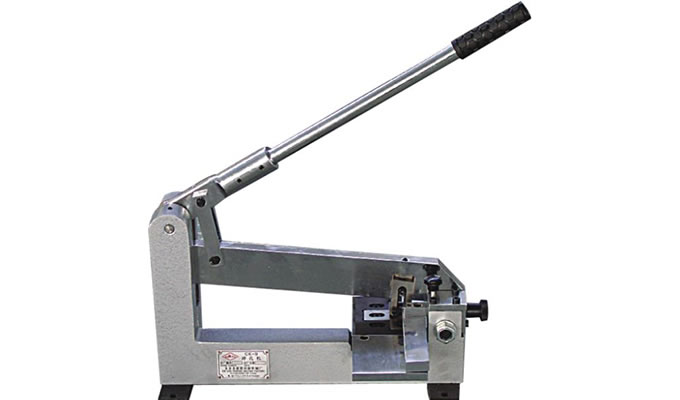

The punching machine is used to punch slots into the connection position of boards for rules and creasing purposes.
Depth of the punching: 0-25mm
Punching Width: 9 mm

Dimensions: 580*310*280mm
Weight: 20kg
Angle of the rule's edge: 16°42'

Dimensions: 700×960×265
Weight: 22Kg
